5,453.00€
Everest-D is the most popular sheet-fed Braille embosser in the world, since 1992. It is a stable printer, supporting heavy braille printing.
Braille |
|
|---|---|
Embossing speed cps |
140 cps |
Single-sided |
 |
Double-sided |
|
Vertical printing (booklet) |
|
Adjustable line spacing |
|
Braille font |
2.2, 2.5, 3.2 mm |
Tactile resolution |
500 dpi |
Forming method |
13 solenoids against steel anvils |
Additional info |
The tactile resolution is that we can place a dot with a position of 0.05 mm with the floating dot area descibed on page Floating page braille printing |
Communication |
|
USB |
|
USB memory stick |
|
Wi-Fi network |
|
Wired network |
|
Bluetooth |
|
Supports mobile devices |
|
Printer driver for Windows |
|
Printer driver for Mac |
|
Printer driver for Linux |
|
Web interface |
|
Free firmware upgrade |
|
Supports idB |
|
Electrical |
|
Voltage |
100-240 V AC |
Power max |
140 W |
Power stand by |
5 W |
Eco power down |
0.05 W |
Switched power supply |
|
General |
|
Price |
$4,395.00 |
Warranty |
4 years |
cps/1000 USD |
32 |
Produced by |
Produced by: Index Braille Hantverksvägen 20 954 33 Gammelstad Sweden www.indexbraille.com |
Measurements |
|
Height |
45 cm (17.72 in) |
Width |
56 cm (22.05 in) |
Depth |
18 cm (7.09 in) |
Net volume |
45.36 dm3 (1.6 ft3) |
Net weight |
12 kg (26.4 lbs) |
Noise level |
80 dB(A) |
Noise level with acoustic protection |
60 dB(A) |
Paper |
|
Tractor-fed |
– |
Cut sheet fed |
|
Paper roll |
– |
Sheet feeder size |
50 pages |
Paper weight |
80-250 g/m2 |
Paper width |
130-297 mm (5.1″-11.7″) |
Paper length |
120-762 mm (4.7″-30″) |
Adjustable paper size |
|
Fixed paper size |
– |
September 2022 Index has launched a new type of the V5 embossers called 1366. The previous V5 embossers are called type 1365 and the main difference between the two types is the main board. The reason for developing this new type of board was because we needed to replace the WiFi/Bluetooth module.

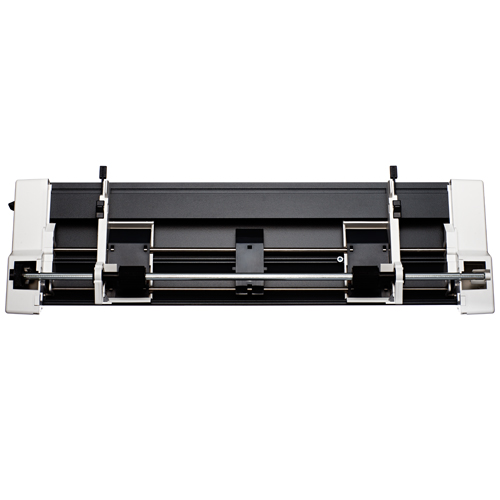

The sheet-feeder used in Everst-D is owned by Index Braille. This is why it is fine-tuned for best function oneavy braille paper. The Everest supports a paper width of up to 297 mm and user defined paper sizes.
The Everest-D V5 has been updated to include all the latests Braille techniques and compatibility with mainstream technology.
Braille on cut-sheet paper is the future. The sheet-feeder of Everest-D is optimized to support heavy braille paper.
Light is an important design component in all V5 embossers and a hallmark for its technology level. It both guides the user interface and decorates the embosser.
All mechanical systems need maintaining. With Index embossers it is minimized to:
All Index V5 printers support tactile graphics mixed with braille at the same page. Graphic images are generated by complimentary softwares.
The control panel is the user interface which allows the user to setup and use embosser.
Index V5 printers support the BrailleApp user interface. It is probably the most intuative user interface on the market.
The New Generation V5 solenoids introduced in October 2018, offers an excellent braille quality. The dot hight and form are maintained during hours of continuous printing.
idB (Index-direct-Braille) opens the possibility to print standard files without an external braille editor. The file will be translated and formatted within the printer, following the active embosser layout.
In V5 embossers the speech feedback is generated by Acapela synthetic speech. This enables dynamic feedback when controlling the embosser.
Via the remote support portal Index team and the distributors have access to selected Index V5 printers. The V5 printer should be connected to a network and upgraded to latest firmware.
Index V5 printers include USB port, port for USB memory stick, wired network, WiFi network and Bluetooth.
